| Mateiral | Ti3AI2.5V(Gr.9) /Ti6AI4V(Gr.5) |
| Wheel Size | Up to 700C |
| Surface Treatment | Brushing/Sandblasting/Mirror Polishing/PVD/Anodized |
| Custom Logo | Engraving/Laser Engraving/Anodized/Decals |

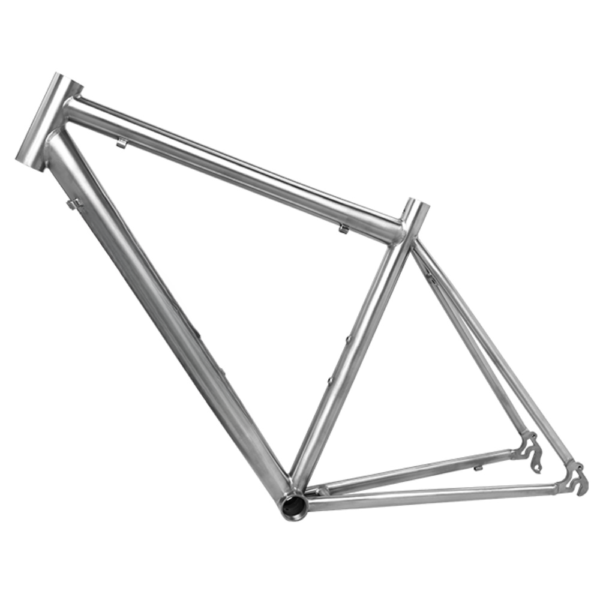

Ti Road Frame Specs |
|||||||
|---|---|---|---|---|---|---|---|
| Frame Material | Ti3AI2.5V(Gr.9) /Ti6AI4V(Gr.5) | Head Tube | 34mm/Custom | B.B (bottom bracket) | BB68/Custom | Wiring Mode | External cabling Routing |
| Wheel size | Up to 700c * 40c | Seat Post | φ27.2mm/Custom | Rear Spacing | 135mm/Custom | Bottle Mount Positions | 2/Custom |
| Frame size | 48/50/52/54/56/58/60/62cm /Custom | Seatpost Clamp | φ31.8mm/Custom | Dropout | Titanium CNC Dropout/Custom | Surface Treatment | Brushing/Sandblasting/Mirror Polishing/PVD/Anodized |
1.Material Options
The bicycle frame is available in two titanium alloy options: Ti3Al2.5V (Grade 9) and Ti6Al4V (Grade 5), offering different strength and weight characteristics.
2.External Cable Routing
The bike employs external cable routing, which simplifies maintenance and cable replacement, providing a practical and accessible setup.

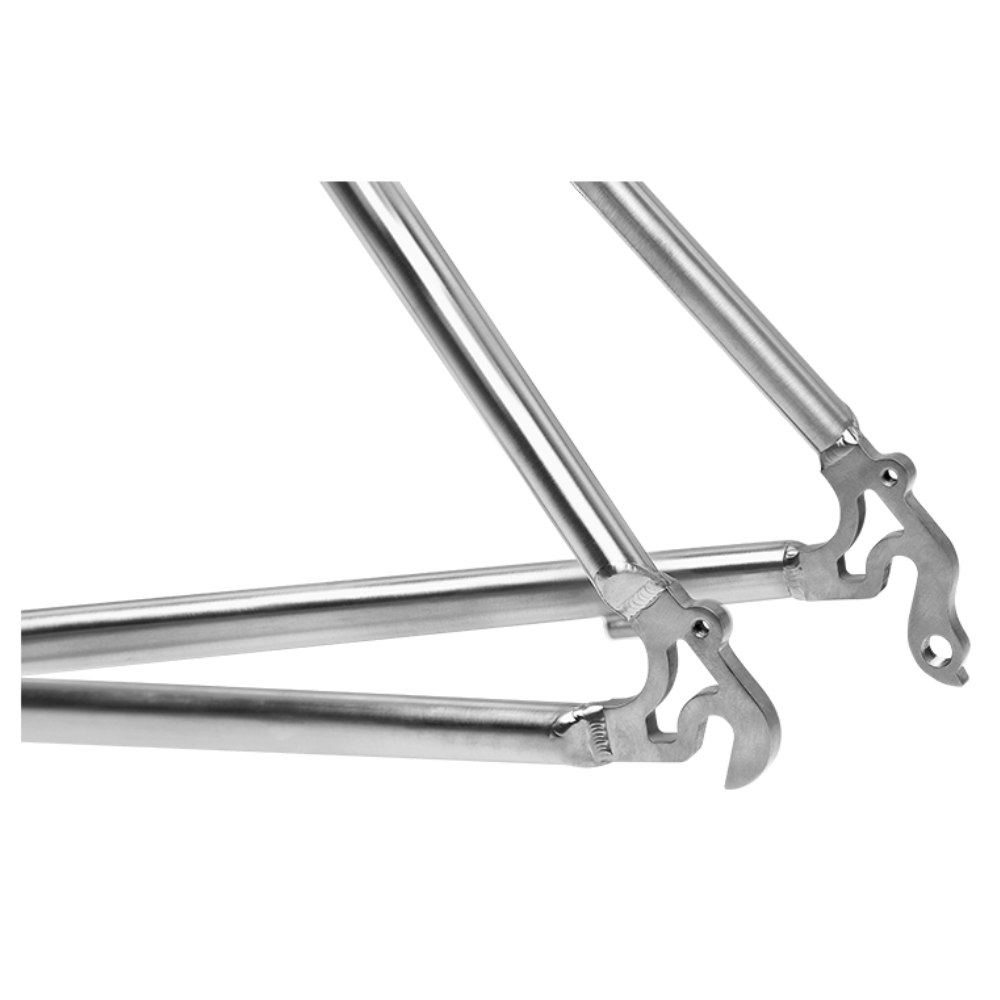

3.Titanium CNC Quick-Release Dropouts
The rear dropouts are made from titanium and feature CNC machining for precise fit and quick-release functionality, enhancing the bike’s usability and aesthetics.
4.Bottle Cage and Rack Mounts
The frame includes mounting points for a bottle cage and rear rack, ensuring practicality and convenience for longer rides or commuting.
5.Fsh-scale Welding
The frame is constructed using fish-scale welding, which not only looks attractive but also contributes to the structural integrity of the bicycle, combining form and function.
6.Customizability
The bicycle can be customized according to the rider’s preference, including size, geometry, surface finish, and logo design, allowing for a personalized riding experience.
1. Durability and Longevity
Ti Road Frames are renowned for their exceptional durability. Titanium’s strength-to-weight ratio allows these frames to withstand the rigors of road cycling without succumbing to the fatigue or corrosion that can plague other materials. This means a Ti Road Frame can last for years, even under heavy use.
2. Vibration Absorption
One of the standout features of a Ti Road Frame is its ability to absorb road vibrations. This characteristic makes for a smoother, more comfortable ride, especially on long distances where every little bump can become tiresome. Riders often comment on the “silky smooth” feel of titanium frames.
3. Lightweight Performance
Despite its strength, titanium is a lightweight material, making Ti Road Frames an ideal choice for cyclists looking to maximize their performance without compromising on durability. This balance between strength and weight is crucial for competitive cyclists who need to climb hills or maintain high speeds.
4. Customization and Fit
Ti Road Frames offer great flexibility for customization. Since titanium can be easily manipulated by skilled frame builders, these frames can be tailored to a cyclist’s exact specifications, including fit, geometry, and even aesthetic preferences. This level of personalization can significantly enhance both the comfort and performance of the bike.
5. Aesthetics and Style
Finally, Ti Road Frames have a distinct aesthetic appeal. The natural silver color of titanium, combined with its ability to be finely polished or brushed, creates a frame that is as beautiful as it is functional. For many cyclists, the look of a Ti Road Frame is a source of pride and adds to the overall enjoyment of their cycling experience.
